In modern power systems, diesel generators play a crucial role as an emergency backup power source, especially during the “black start” process when the grid fails.
Black start diesel generator refers to the process where diesel generators starting up and restoring power supply after a system fails. However, ensuring that the diesel generator starts quickly and reliably during this process is critical to the successful restoration of power.
Part 1. What is a Black Start Diesel Generator?
As we mentioned earlier, a black start refers to the process in which a diesel generator independently starts and restores power supply after a large-scale power system failure, when external power from the grid is unavailable.
This process puts a high demand on the generator’s starting system, requiring the starting equipment to have efficient and reliable starting capabilities.
During a black start, the generator typically relies on starters, batteries, and other starting devices, and proper functioning of these devices is crucial for a successful start.
Part 2. What is the Black Start Process?
The black start process refers to the procedure of restarting a power grid after a complete failure or blackout without relying on external power from the grid. In this scenario, power must be restored using only local power sources like diesel generators, gas turbines, or other backup systems.
Here’s how the black start process typically works:
Initial Power Source Activation: A small, local power source (such as a diesel generator) is used to start up other equipment in the grid. These generators do not rely on external electricity, which is why they must have their own starting power, such as batteries or special startup systems.
Restoring Power to Critical Systems: Once the initial generator starts, it supplies power to critical infrastructure, like control systems and other essential equipment needed to stabilize the grid.
Scaling Up Power Generation: Additional power generation units (such as more diesel generators or gas turbines, are brought online, gradually increasing the total power supply.
Synchronizing the Grid: As more generators come online, they are synchronized with the grid. The goal is to restore power in a way that avoids overloading the system and maintains stability.
Gradual Restoration of the Entire Grid: Over time, more generators and electrical systems are added to the grid, and it is fully restored to normal operations, all without relying on external grid power.
Part 3. Applications of Black Start Diesel Generator
Black start diesel generators are widely used in critical infrastructure sectors, especially in places where continuous and uninterrupted power supply is essential. Here are some typical application scenarios:
Hospitals: Hospitals have high power demands, and any power interruption could jeopardize patient safety. Black start generators ensure that hospitals can continue operating during power outages.
Data Centers: Data centers store a large amount of critical digital information, and power outages could result in data loss or equipment damage. Black start diesel generators can quickly restore power, safeguarding data security.
Communication Base Stations: Communication base stations are responsible for maintaining the normal operation of communication networks. A power outage can lead to widespread communication disruptions. Black start generators ensure the stability of the communication network during emergencies.
Power Facilities: Power facilities need to restore grid stability immediately in the event of a power outage. Black start generators are used to restore power supply to the grid and ensure the smooth operation of the power system.
Part 4. Common Black Start Failures & Solutions
During the black start process, diesel generator starting failures typically manifest in the following ways:

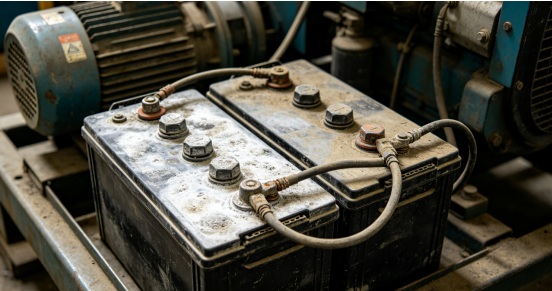

Insufficient Battery Power
After a power grid collapse, the battery may not provide enough power to start the generator. Batteries usually need to remain sufficiently charged to ensure proper starter function, but over time, or if the battery is old, it may fail to supply the required voltage to start the engine.
Solution: Regularly check and maintain the battery, ensuring it is fully charged. If necessary, replace the battery. Additionally, installing backup batteries or an external power source is advisable for emergencies.
Starter Failure
The starter is a critical component in the generator startup process, as it drives the engine to rotate. If the starter is unused for a long time or has aged, it may fail to initiate the engine. Starter failure often presents as no response during startup or unusual noise.
Solution: Regularly inspect and maintain the starter, ensuring secure electrical connections and clearing any blockages. If the starter is found to be worn or damaged, it should be replaced.
Fuel Supply Issues
During a black start, fuel system issues, such as fuel pump failure, clogged fuel lines, or poor fuel quality, can prevent the generator from starting or cause it to shut down shortly after starting.
Solution: Check the fuel lines and pump for any issues, clean the fuel filter, and ensure good fuel quality. If needed, clean or replace damaged fuel system components.
Cooling System Issues
In cold weather, the coolant may freeze or other parts of the cooling system may malfunction, making starting difficult or leading to overheating.
Solution: Use coolant appropriate for the climate and regularly check the cooling system for blockages or freezing risks to prevent overheating and ensure smooth engine startup.
Except the common solutions we mentioned above, choosing an alternative starting method, such as spring starter, is crucial. Spring starter systems, which are mechanically driven, can provide a reliable solution when battery power is low or the starter fails. A spring starter operates without relying on battery or electrical power, making it a reliable option when traditional starting systems are damaged.
Part 5. How Spring Starter Improve Black Start Success Rate?
Spring starter works on the principle of mechanical spring energy storage. It stores energy manually or automatically, and when needed, releases it to rotate the engine. Unlike traditional battery-driven starters, a spring starter does not rely on electrical power, making it ideal for black start scenarios.
Specifically, the advantages of spring starters include:
Independence from Batteries: Spring starters use mechanical energy to start the engine, unaffected by battery charge levels. This is especially beneficial when the battery is low or unreliable.
High Reliability: Since spring starters do not involve battery charging or electrical components, their failure rate is relatively low, making them suitable for startup needs in harsh environments.
Fast Startup: A spring starter can quickly release stored energy, enabling rapid engine startup, which significantly increases the success rate of black starts.
Part 6. How to Choose Right Spring Starter for Black Start?
When selecting the right spring starter, several factors must be considered to ensure optimal performance and compatibility:
- Engine Type: Choose a spring starter with the appropriate power rating based on the engine model of the diesel generator.
- Operating Environment: If the generator operates in harsh conditions (such as extremely low temperatures or high humidity), it is essential to select a spring starter that is designed to function effectively in these environments.
- Startup Frequency: Different models of spring starters are suited to varying startup frequencies. Choose one based on how often the generator is started.
As a leading spring starter manufacturer, Cqstart spring starter offers a range of models to cater to the diverse needs of our customers. Each product undergoes rigorous testing to guarantee its durability and stability. Cqstart Spring Starter is designed with cutting-edge technology, ensuring reliable and efficient engine startup even under the most challenging conditions.
Whether you need a spring starter for frequent or occasional use, Cqstart spring starters are built to provide exceptional performance and ensure the reliable startup of diesel generators in critical situations.
Wrap Up
Black start diesel generator plays a crucial role during a power system failure. However, without external power support, the reliability of the starting system becomes key to a successful start. During the black start process, issues such as low battery power or starter failures may arise.
At this point, spring starter, as a battery-independent starting solution, can significantly improve the success rate of starting the diesel generator and ensure that the power system is restored in the shortest time. If you want to ensure your generator starts smoothly during critical moments, don’t hesitate to contact Cqstart!
