0 Group System Spring Starter for Diesel Engine (Max 50L)

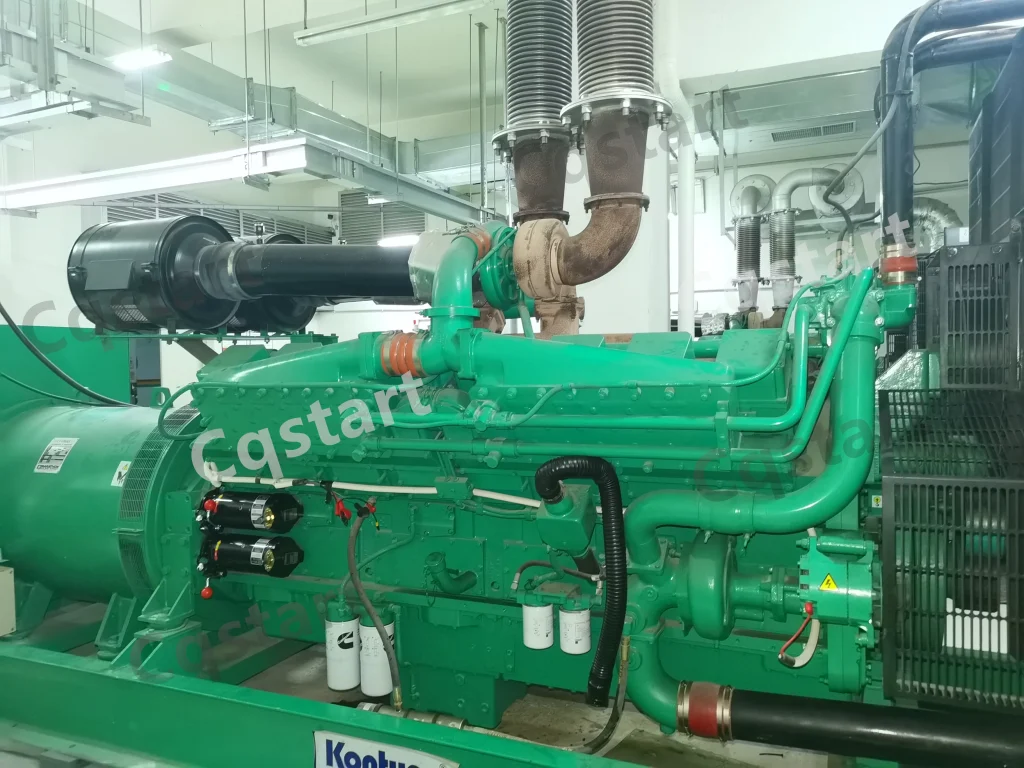

Cqstart 0 Group System Spring Starter supports diesel engines with a displacement of up to 50 liters. It consists of 2 spring starters connected in parallel through a special way, greatly improving the starting ability of large engines. Cqstart 0 Group System Spring Starter is particularly ideal for emergency generators and pump sets in large facilities such as airports and hospitals.
Description
Applicable Engine Models
- Cummins K38
- Yuchai YC6C
- Cummins K50
Features of 0 Group System Spring Starter
- Exceptional starting power, the optimal solution for engines over 20L
- World-record spring starting power, capable of starting diesel engines with up to 50L displacement
- Multi-starters combination extends the range of starting capabilities
- For large engine units, it is significantly cheaper than hydraulic and air starters
Specification & Video
| Cqstart Spring Starting System | 0 Group System | |
| Mounting Flange | SAE# on standard | 1, 2, 3 |
| Diesel Engine Displacement | Liter(L) / Cylinder & Max Cylinder Number | 4.3 & 6 |
| 3.2 & 12 | ||
| 2.5 & 16 | ||
| Max Pinion Torque | Nm | 240-360 |
| Max Winding Torque | Nm | 100-110 |
| Weight | Kg | 46-54 |
| Turns to Fully Wind | Turns | 30-34 |
In order to meet different needs of various diesel engines, Cqstart provides standard SAE interfaces and customized interfaces.
Hundreds of special alloy gears, durable and suitable for different applications. Various modules, teeth and pressure angles, suitable for different models.
