4 Series Spring Starter (10-13L)

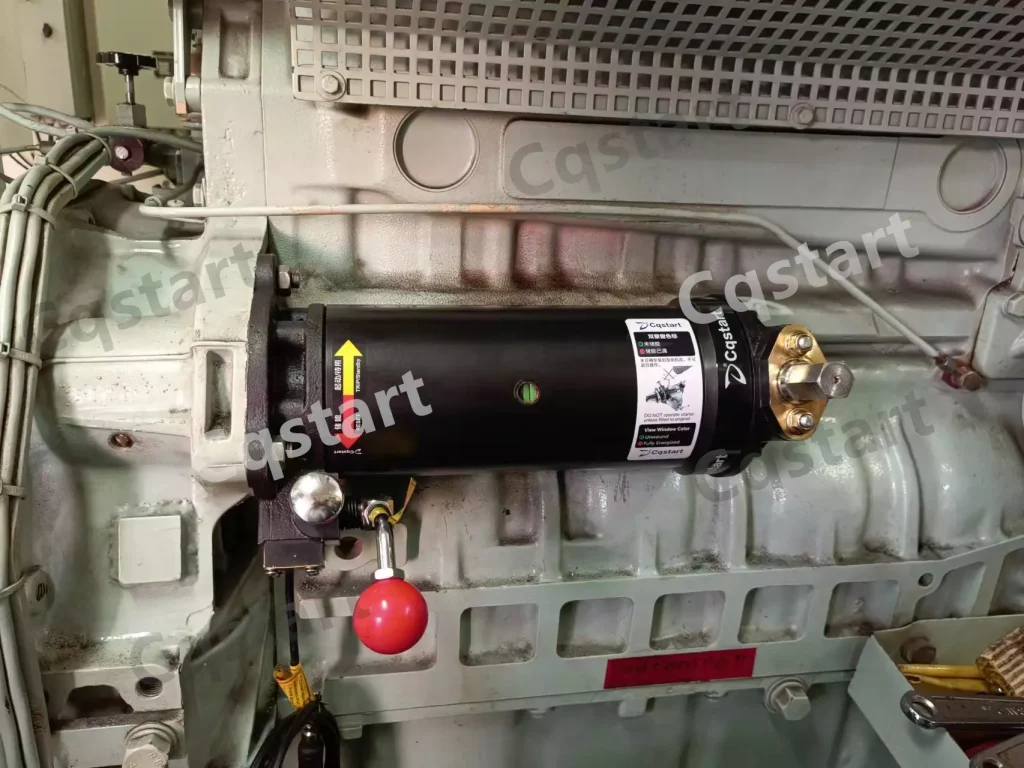

Cqstart 4 Series spring starter is designed for starting diesel engines with displacements between 10 and 13 liters, making it particularly well-suited for marine applications.

4 series spring starter
4 series spring starter
4 series spring starter
4 series spring starter
4 series spring starter
4 series spring starter

Description

Applicable Engine Models

  • Weichai WP12
  • Weichai WD618
  • Deutz BF6M1015
  • MWM TBD234 V12
  • Hechai TBD234 V12

Features of 4 Series Spring Starter

  • Suitable for diesel engines from 10-13L
  • Low maintenance requirements, using maintenance-free grease to reduce maintenance costs and downtime
  • It’s easy to operate and the staff can handle it quickly. Also, the device can complete a cycle within 30 seconds

Specification

Cqstart Spring Starter4 Series
HDP2
Mounting FlangeSAE# on standard1, 2, 3
Diesel Engine
Displacement 		Liter(L) / Cylinder &
Max Cylinder Number		2.1 & 6
1.7 & 8
1.5 &12
Max Pinion TorqueNm126
Max Winding TorqueNm100
WeightKg23
Turns to Fully WindTurns2+13
Note: In order to meet different needs of various diesel engines, Cqstart provides standard SAE interfaces and customized interfaces.
sae interfaces

Hundreds of special alloy gears, durable and suitable for different applications. Various modules, teeth and pressure angles, suitable for different models.

Video

Why Choose Spring Starter from Cqstart?

Advanced Protection

  • Equipped with a micro anti-lock device to prevent accidental double-start operations and extend engine life.
  • Spring starter’s surface is treated with a baked enamel coating, offering various resistance.

Sturdy & Durable

  • Hundreds of special alloy gears are used for various purposes to ensure the product ‘s strength and durability.
  • All products undergo rigorous testing to meet the highest standards of quality and durability.

Safe & Reliable

  • The mechanical structure is designed to be explosion-proof and suitable for hazardous environments.
  • No liquid grease and magnetism, meets the safety standards for special occasions such as air transportation.

Related Products

Product Features

 1. Product Function of Cqstart Spring Starter :

The starter can compress the springs and store high energy within the unit, then release energy rapidly to start the engine.

It only needs hand cranking and releasing.

2. Typical Features of Cqstart Spring Starter :

a. Adaptability (Adapt to harsh working conditions, including the conditions with spark, chemistry and wet.)

    b. Safety (It is a type of mechanical starter, which can be directly operated by people.)

    c. Simple and Complete Structure (Independent hand-cranking working system, with no electricity, gas or other energy systems.)

    d. Swift (Easy to operate, and it can release the energy rapidly.)

    e. Maintenance-free (Resistant high/low temperature, corrosion resistance. There is no maintenance cost.)

    f. Reliability (Reasonable design, mature technology, high-quality material, strict control.)

    g. Preventor (Prevent misoperations on dual motor engines.)
